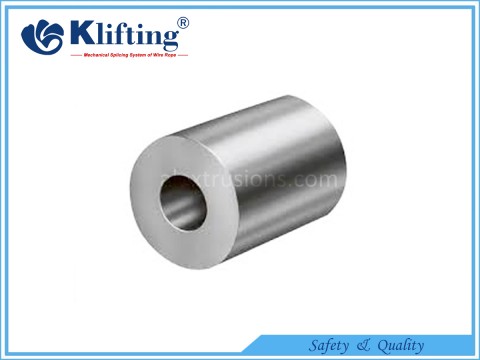

Aluminum Round Ferrule
Round aluminum ferrules are not permitted for lifting applications. The expected strength of the terminal is approximately 50% of the MBL of the wire rope(FYI). Therefore, validation tests must be performed to ensure the strength of the application.
Round aluminum ferrules are commonly used as end stops or stoppers on bright or galvanized wire rope. The aluminum alloy is EN AW 5051A according to EN 573-3 and complies with material requirements in EN 13411-3. The same type of dies as for oval ferrules are to be used.
When properly applied, ferrules are capable of holding the rated breaking strength of the rope to which they are applied. However, to determine the exact holding strength, a TENSION TEST must be performed before use. This step insures the proper selection of materials, the correct swaging procedure, and an ample margin of safety for the intended use.
| Product Name | Aluminum Round Ferrule |
| Standard | US |
| Brand | Klifting |
| Material | Aluminum Alloy |
| Technology | Extrusion |
| Size | 3/64"-5/8" |
| US Type Aluminum Stop Button | |||||
| Part No. | Ferrule Code | A(mm) | D(mm) | L(mm) | Weight kg/1000pcs |
| KRA0364 | 3/64 | 1.54 | 4.4 | 4.16 | 0.236 |
| KRA0116 | 1/16 | 1.92 | 6.35 | 4.16 | 0.278 |
| KRA0564 | 5/64 | 2.38 | 6.35 | 4.16 | 0.282 |
| KRA0332 | 3/32 | 2.9 | 8.72 | 7.95 | 1.05 |
| KRA0108 | 1/8 | 3.86 | 8.72 | 7.95 | 0.949 |
| KRA0532 | 5/32 | 4.7 | 11.11 | 8.73 | 1.76 |
| KRA0316 | 3/16 | 5.54 | 11.11 | 8.73 | 1.69 |
| KRA0732 | 7/32 | 6.35 | 11.11 | 8.73 | 1.5 |
| KRA0104 | 1/4 | 7.2 | 17.46 | 17.46 | 9.07 |
| KRA0516 | 5/16 | 9.53 | 17.46 | 17.46 | 7.46 |
| KRA0308 | 3/8 | 11.13 | 17.46 | 17.46 | 6.58 |
| KRA0102 | 1/2 | 14.28 | 26.98 | 26.98 | 30.32 |
| KRA0916 | 9/16 | 15.88 | 28.6 | 31.75 | 38.52 |
| KRA0508 | 5/8 | 17.46 | 31.75 | 31.75 | 47.88 |
