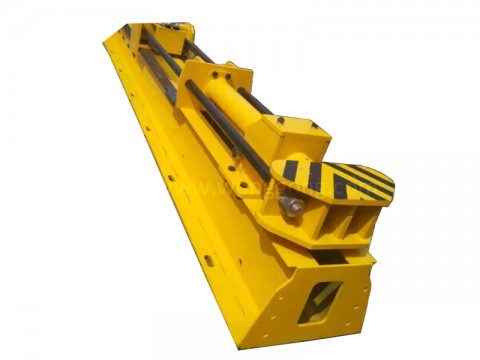

Testing Bed



Model

50ton

100ton

200ton

300ton

600ton

1000ton

2000ton

Capacity

500kN

100kN

200kN

300kN

600kN

1000kN

2000kN

Test Length

4m<L<7.3m

4m<L<7.3m

4m<L<8.2m

4m<L<8.5m

6m<L<11.6m

6m<L<12m

6m<L<15m

Voltage&Frequency

380V 50Hz Or As Request

Power

2.2kW/6p

2.2kW/6p

4.4kW/6p

4.4kW/6p

8kW/6p

8kW/6p

23kW/4p

Max Pressure

63MPa

Control Pressure

10MPa

Working Stroke

1200mm

1500mm

1200mm

1500mm

2000mm

2000mm

2000mm

Working Speed

10.3mm/s

9.8mm/s

10mm/s

9mm/s

8mm/s

10mm/s

8mm/s

Dimensions(L*W*H)

11600*600*772

11600*720*855

9700*1500*970

10600*2300*1000

14600*2820*1435

15200*2820*1660

23250*2860*1660

Weight(Approx)

4600kg

6500kg

7200kg

12000kg

45000kg

68000kg

118000kg

Noise Level

≤80dB

Auto-balance

Available

Control Method

Computer

Testing Report Printing

Available

Auto-protect Guard

Available

Colour

Gray or As Request
