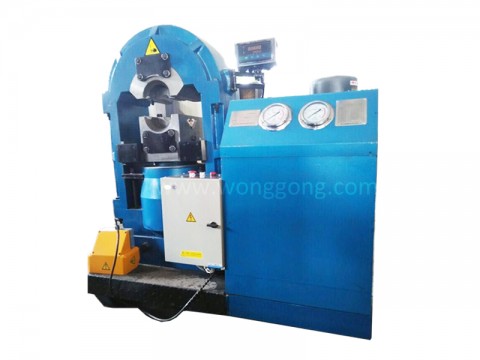

O-Type Wire Rope Press Machine

O-Type Wire Rope Press Machine

Wire Rope Press Machine

O-Type Wire Rope Press Machine



Model

K-350-O

K-600-O

K-1000-O

K-01500-O

K-3000-O

K-5000-O

Capacity

3500kN

6000kN

10000kN

15000kN

30000kN

50000kN

Press range

6-28mm

6-36mm

16-48mm

16-60mm

32-96mm

32-120mm

Max.diameter (Multi-pressing)

32mm

44mm

52mm

65mm

106mm

140mm

Voltage & frequency

380V 50Hz Or As request

Power

2.2kW

4kW

4kW * 2

7.5kW * 2

7.5kW * 2

7.5kW * 4

Max. Pressure

63Mpa

76Mpa

63Mpa

Control pressure

10Mpa

Working stroke

25mm

50mm

100mm

120mm

240mm

370mm

Piston working speed

9mm/s

9mm/s

8mm/s

8mm/s

9mm/s

9mm/s

Dimension (L*W*H)

1500 * 650 * 1550

900 * 530 * 1400

1400 * 950 * 2350

1690 * 1050 * 2650

2000 * 990 *3400

2440 * 1270 * 4300

Weight (Approx.)

1800kg

2500kg

5200kg

6800kg

18000kg

36000kg

Noise Level

≤70dB

Color

Blue or as request
