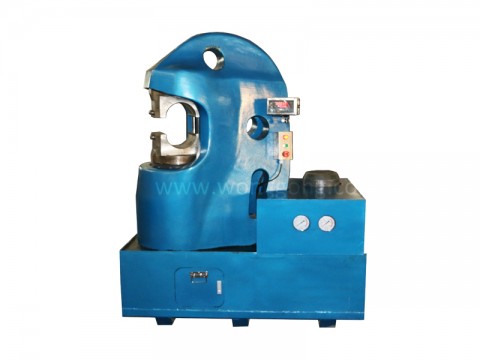

C-Type Wire Rope Press Machine

C-Type Wire Rope Press Machine

Wire Rope Press Machine

C-Type Wire Rope Press Machine





K-50C

K-150C

K-350C

K-600C

Max.Capacity

500kN

1500kN

3500kN

6000kN

Pressure Range

1-6mm

6-16mm

6-28mm

6-36mm

Max. Swage

8mm

18mm

32mm

44mm

Voltage

380V 50Hz Or As request

Power of Motor

2.2kW

4kW

4kW

7.5kW

Max Pressure

63Mpa

Control Pressure

10Mpa

Piston Working Stroke

25mm

50mm

90mm

120mm

Upstroke Velocity

9mm/s

10mm/s

8mm/s

8mm/s

Overall Dimensions (L*W*H)

1500 * 650 * 1550

900 * 530 * 1400

1500 * 650 * 1550

1690 * 680 * 1650

Weight (Approx.)

340kg

520kg

2200kg

3600kg

Noise level

≤80dB

Colour

Blue or as request
